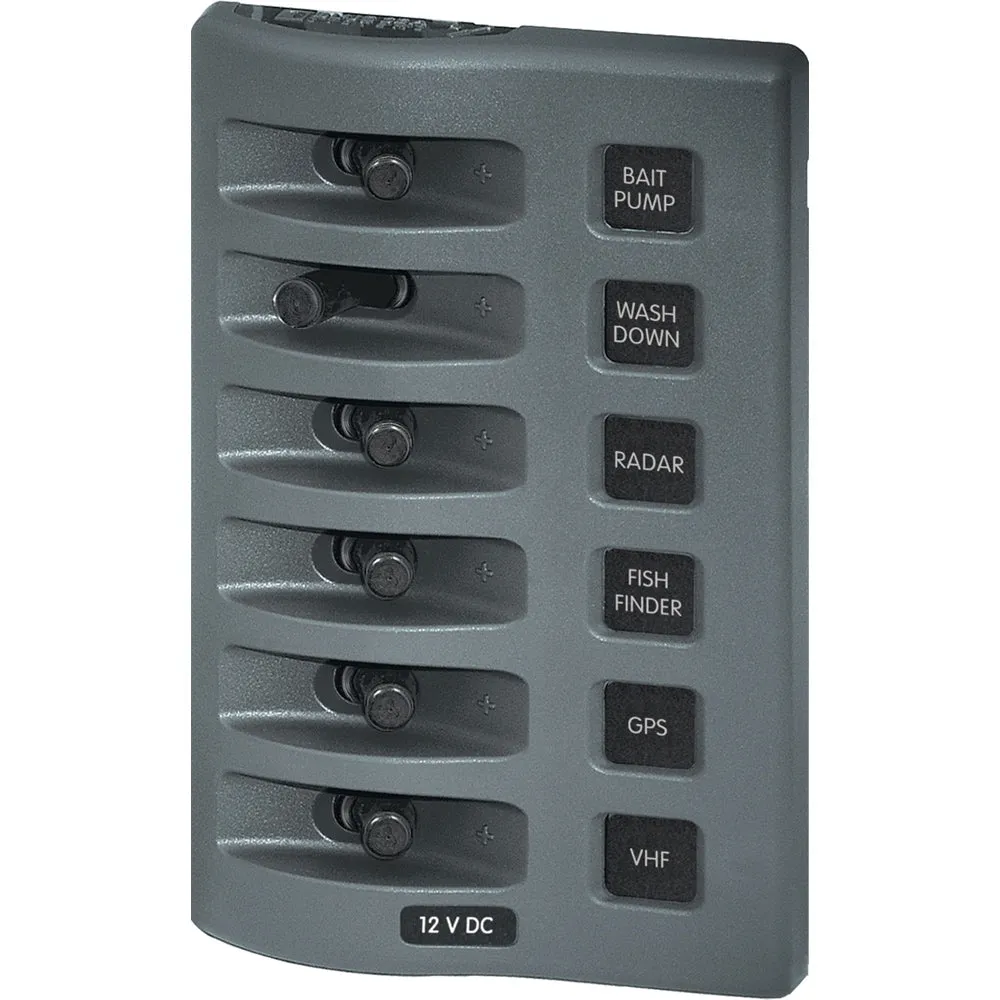

WeatherDeck 12V DC Waterproof Switch Panel - 6 Position

• Integrated switch guards reduce the risk of accidental switching

• Panels can be mounted in four different orientations

• Panel front rated IP67 when properly mounted with watertight mounting gasket

• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof: Waterproof
Positions:6
Nominal Voltage:12V DC/24V DC
Circuit Protection:None
Maximum Amperage:15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material:Reinforced Polycarbonate
Height:6.00"(152.4 mm)
Width: 3.88"(98.55 mm)
Depth:2.50"(63.5 mm)
Weight:1.15lb (0.52 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Voltage: 12/24v
• AC/DC: DC
• Max Breaker Quantity: 6
• Waterproof: Waterproof
• Box Dimensions: 4"H x 6"W x 9"L WT: 0.9 lbs
• UPC: 632085043070
